Boulder 3010 Préamplificateur
Par Boulder
SPECIFICATIONS

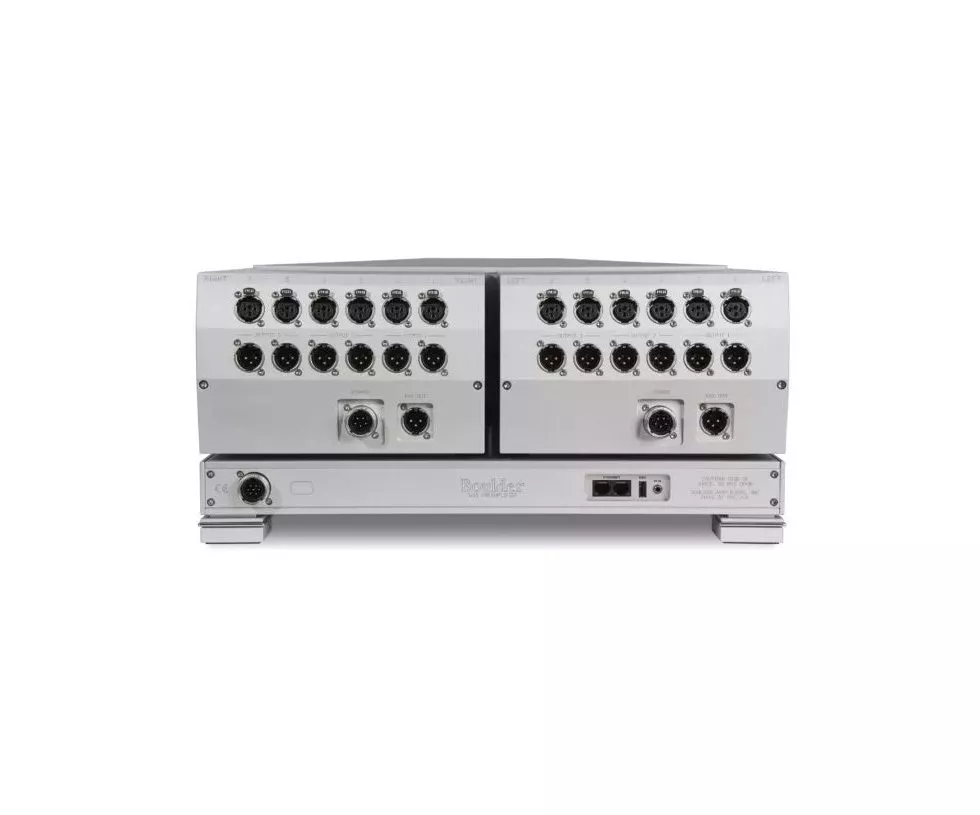

- Balanced Inputs: 6 via 3-pin XLR
- Balanced Outputs, Dual: 3 via 3-pin XLR
- Auxiliary Balanced Output: 1 via 3-pin XLR
- Maximum Input Level: 7 Vrms
- Maximum Output Level: 28 Vrms
- THD+N, 2V Output, 20 Hz to 5 kHz: 0.0008% (-102 dB)
- THD+N, 2V Output at 20 kHz: 0.001% (-100 dB)
- Maximum Voltage Gain: 20 dB
- Volume Range: 100 dB
- Volume Steps: 0.1, 0.5, 1.0 dB ± 0.01 dB
- Auxiliary Path Gain :-1 dB
- Frequency Response, 20 Hz to 5 kHz: +0.00, -0.03 dB
- Frequency response, -3 dB: 0.02 Hz & 300 kHz
- Input Impedance: 333kΩ, Balanced
- Output Impedance :100Ω, Balanced
- Power Requirements: 90-120V / 200-240V, 50 – 60 Hz
- Power Consumption: 240W Maximum

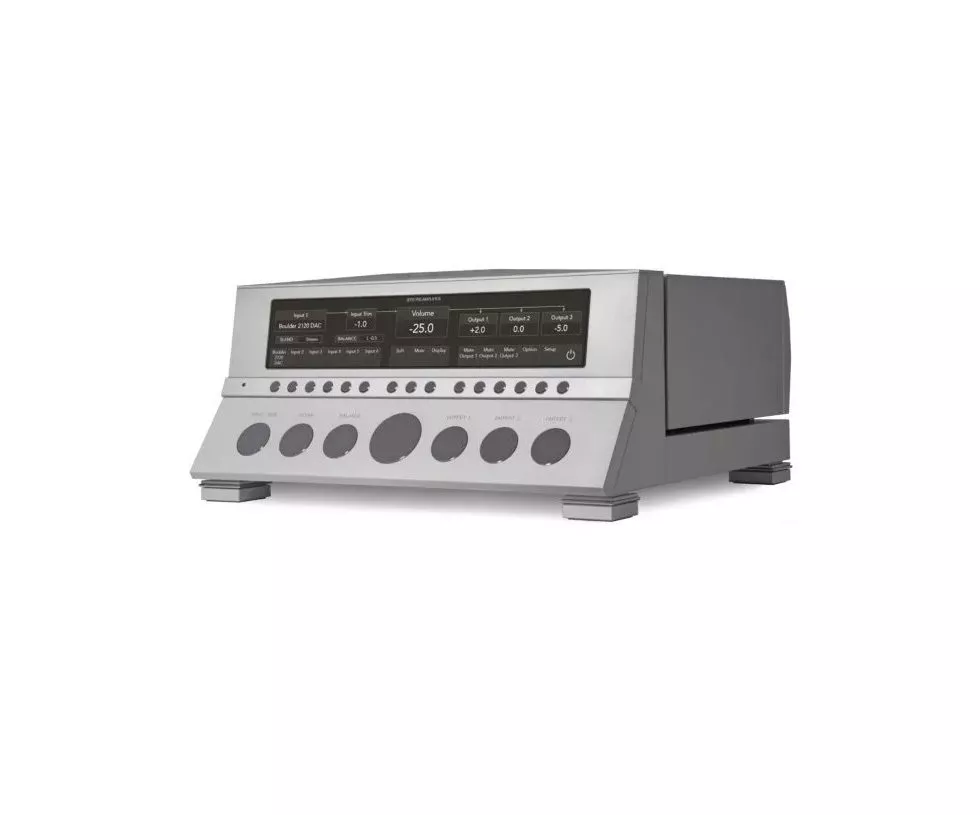

- Preamplifier Chassis Dimensions: 19” (48.25 cm) W x 18” (45.75 cm) D x 9.25” (23.5 cm) H
- Preamplifier Chassis Weight: 78 lbs. (35.4 kg)

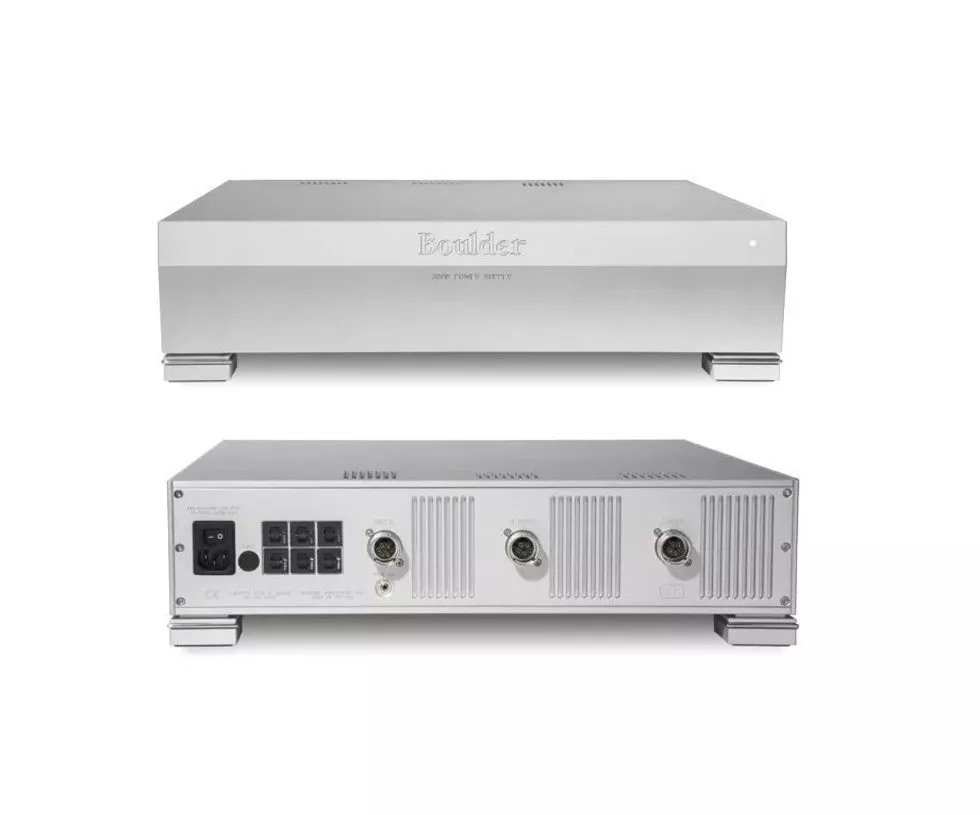

- Power Supply Chassis Dimensions: 19” (48.25 cm) W x 18” (45.75 cm) D x 5.1” (13 cm) H
- Power Supply Chassis Weight: 45 lbs. (20.4 kg)
- Shipping Dimensions: 27” (68.6 cm) W x 33” (83.8 cm) D x 26” (66.1 cm) H
- Shipping Weight: 235 lbs. (106.6 kg)
