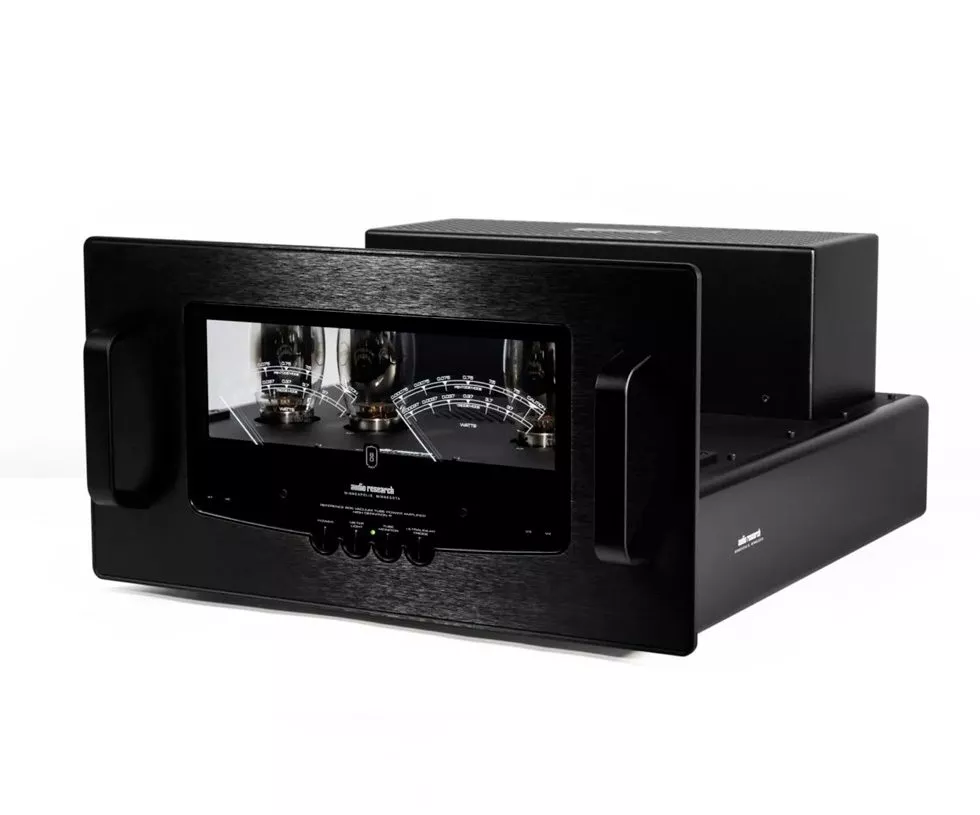

Audio Research Reference 80S
Découvrez en détail les spécificités du nouvel amplificateur stéréo à tubes KT150 intégralement symétrique – 2 X 75W, l’Audio Research Reference 80S par Audio Research
SPECIFICATIONS
- Puissance de sortie: 75 watts par canal continu de 20Hz à 20kHz. 1kHz total harmonic distortion typically 1% at 140 watts, below .04% at 1 watt. Approximate actual power
available at clipping 270 watts (1kHz). (Note that actual power output is dependent upon both line voltage and condition i.e.: if power line has high distortion, maximum power will be affected adversely, although from a listening standpoint this is not very critical.)
(Puissances données pour tubes état milieu de vie) - Bande Passante: (-3dB points) 5Hz to 70kHz
- Réponse en Fréquence: (-3dB points at 1 watt) 0.5Hz to 110 kHz.
- Sensibilité d’entrée: 2.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms.)
- Impédance d’entrée: 200K ohms XLR.
- Borniers de sortie: 4, 8, 16 ohms.
- Régulation de sortie: Approximativement 0.6dB 16 ohm en circuit ouvert (Damping factor approximately 10).
- OVERALL NEGATIVE FEEDBACK : 8.8dB.
- Taux de balayage: 20 volts/microsecond.
- Temps de montée: 1.5 microseconds.
- Rapport Signal Bruit: moins de 0.2mV RMS – 110dB below rated output (IHF-A weighted, input shorted, 14 ohm output).
- Energie de stockage de l’alimentation: Approximativement 900 joules.
- Alimentation Eléctrique: 260 250VAC 50Hz – 770 watts à puissance nominale, 1000 watts maximum, 380 watts en veille, 1 watt off.
- Tubes: 2 paires KT150 (Power output V1-4); 2 6H30 (Gain stage V5 et V6)
- DIMENSIONS
-largeur: 48.2 cm x Hauteur: 26 cm x Profondeur: 54,6 cm, Poignées ajoutent 1.9 cm.
-Poids: 45,36 kg
-Poids pour l’envoi: 50 kg.
-Finitions Disponibles : alu brossé ou noire
