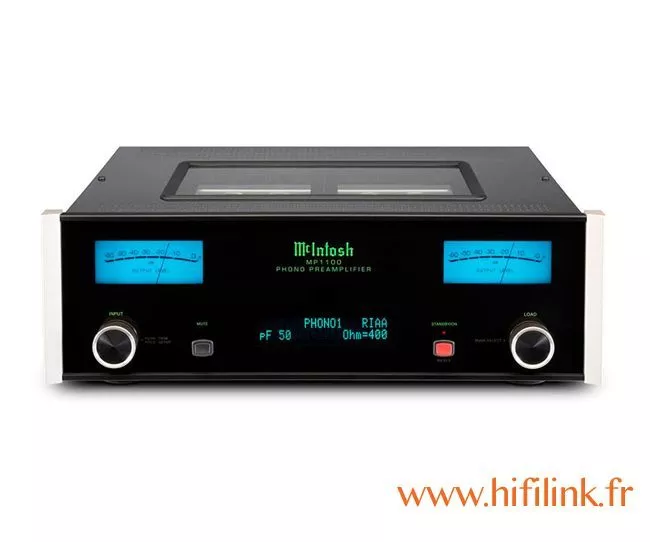

McIntosh MP1100

Découvrez en détail les spécificités du McIntosh MP1100

SPECIFICATIONS

• Total Harmonic Distortion:
• Phono: 0.02%
 High Level: 0.005%
• Frequency Response: +/-0.2dB from 20Hz to 20,000Hz
+0.2, -3dB from 10Hz to 50,000Hz
• Maximum Volts Out (Balanced / Unbalanced):
• 20/10 V RMS
• Input Impedance: Resistance: 25, 50, 100, 200, 400, 1k or 47k Ohms
Capacitance: 50, 100, 150, 200, 250, 300, 350 or 400pF
High Level (Balanced / Unbalanced): 100k
• Ohms / 50k Ohms
• Phono Voltage Gain: Selectable: 40dB, 46dB, 52dB, 58dB or 64dB
• Signal To Noise Ratio:
  Moving Coil: 80dB
Moving Magnet: 84dB
High Level: 118dB

Maximum Input Signal

• (Moving Coil): 10mV
• (Moving Magnet): 100mV
• (Balanced): 20V
• (Unbalanced): 10V

Sensitivity Phono

• (Moving Coil): 1.25mV
• (Moving Magnet): 10mV
• (Balanced): 4V
• (Unbalanced): 2V
• Rated Output: 4V Balanced
2V Unbalanced
• Output Impedance: 200 Ohms Balanced
, 100 Ohms Unbalanced
• Phono Equalization Curves: 5: RIAA, LP, NAB, AES and 78
• Noise Filters 2: Rumble and Scratch
• Phono Profiles: Pre-programmed: 4
User, Programmable: 5

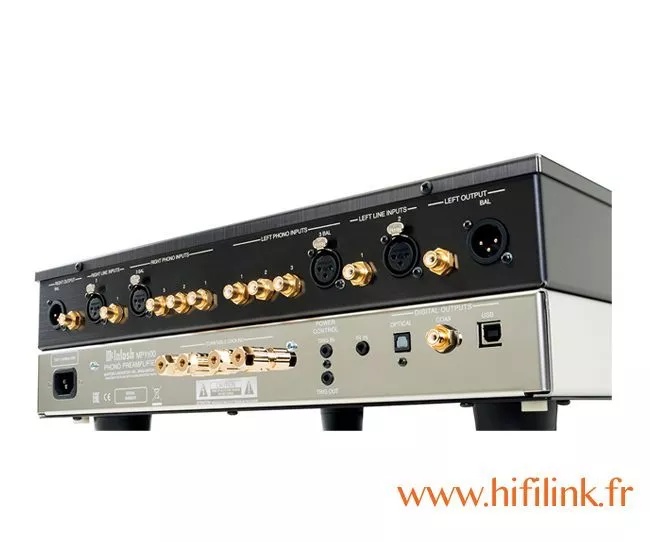

Connectivity:

• Phono Input Universal:3
  (2 sets of RCA only inputs and 1 set of RCA or XLR inputs); each can be configured for either Moving Coil or Moving Magnet cartridges; all inputs adjustable
• Balanced Line Input: 1 Stereo
• Unbalanced Line Input: 1 Stereo
• Balanced Fixed Output: 1 Stereo
• Unbalanced Fixed Output: 1 Stereo
• Digital Coaxial Output: 1
• Digital Optical Output: 1
• USB Audio Output: 1

Control

• Power Control Input: 1
• Power Control Output: 1
• Digital Audio Specifications
• Digital Output Sample Rate
• Optical: PCM – 24-bit/96kHz or 192kHz
• Coaxial: PCM – 24-bit/96kHz or 192kHz
• USB: PCM – 24-bit/96kHz or 192kHz

General Specifications

• Vacuum Tube, (4) 12AX7A
• Power Consumption (On): 50 Watts

Weights & Dimensions

• Dimensions (W x H x D): 17-1/2” (44.5cm) x 6” (15.2m) x 18” (45.7cm)
• Weight: 26 lbs (11.8 kg)

Le McIntosh MP1100 est le nouveau pré phono haut de gamme de chez McIntosh 2017 (MM et MC).
Le MP1100 propose 5 courbes d’égalisation Phono.

McIntosh, vivez la performance légendaire.
