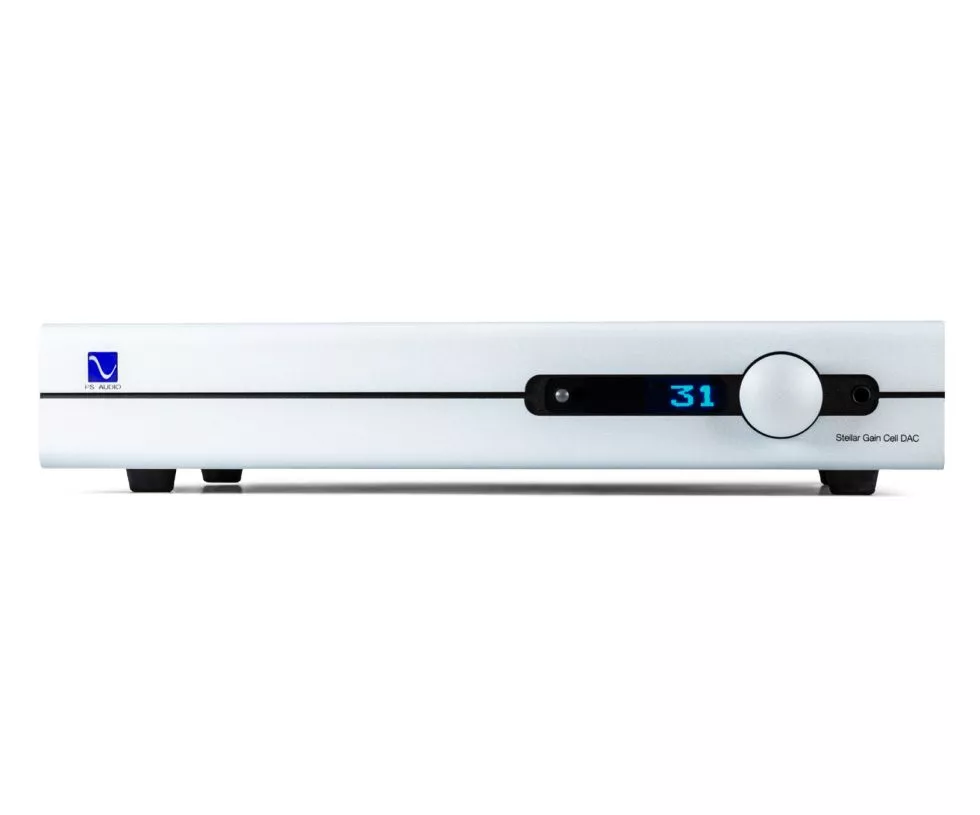

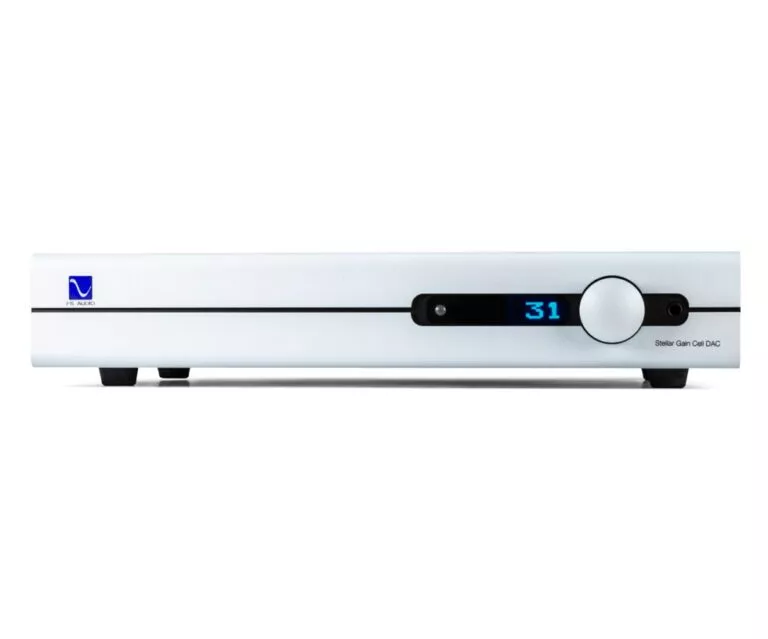

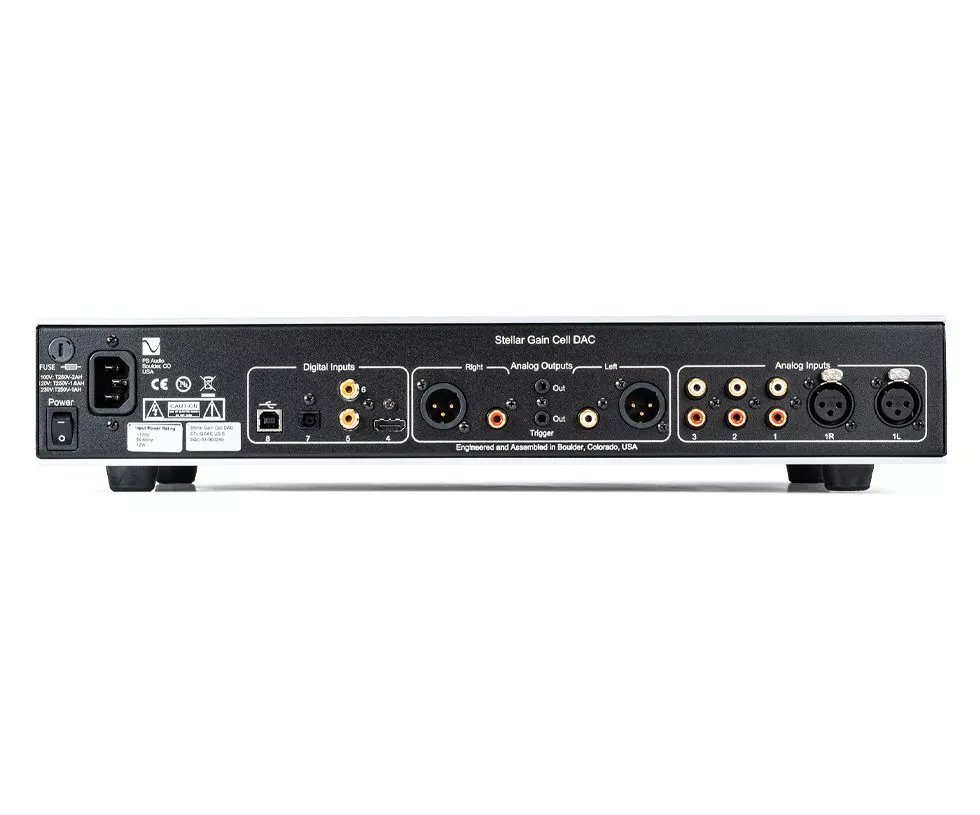

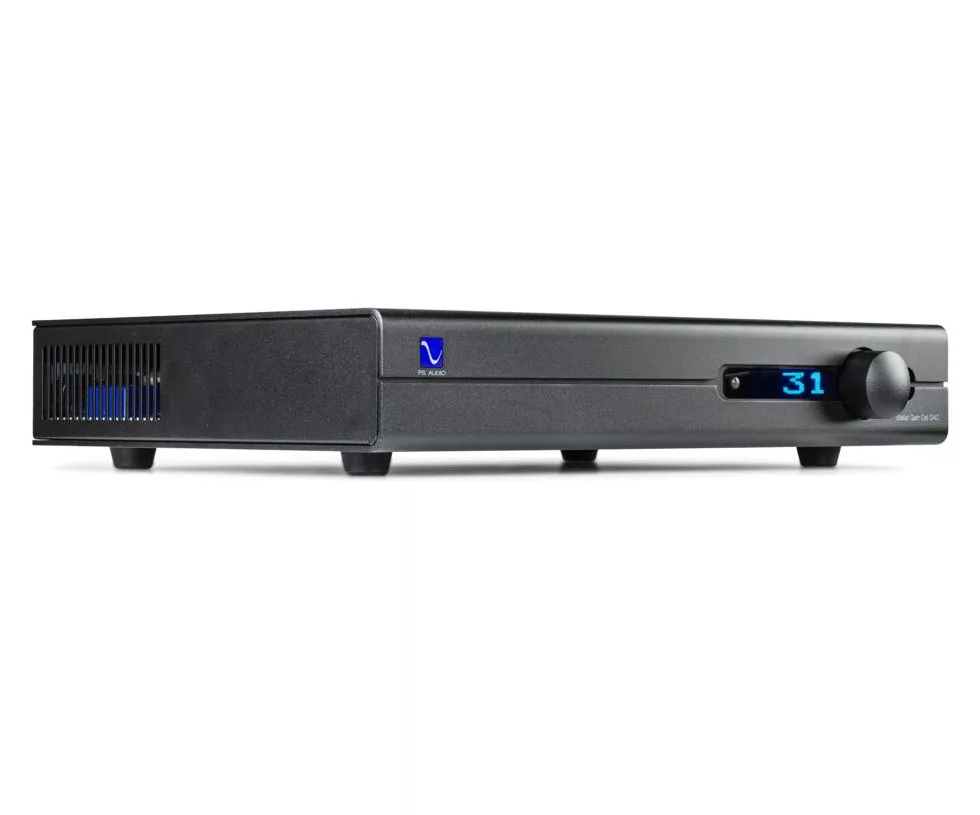

PS audio Stellar Gain Cell DAC

Découvrez les spécificités du Stellar Gain Cell DAC par PS Audio :

SPECIFICATIONS

Conception

• Class A balanced analog preamplifier
• Full function DAC
• Class A headphone output
• Remote control
• Fixed or variable DAC mode
• 2 output 12 volt triggers

Analog preamplifier

• One balanced analog input
• Three single ended analog inputs
• Analog Gain Cell stage
• Fully balanced input to output
• Balanced XLR analog output
• Single ended RCA analog output
• Home theater bypass
• Direct coupled without any capacitors in output signal path

Digital To Analog Converter

• Four digital inputs
• I2S input
• Digital Lens technology
• Native Mode
• Three user selectable digital filters
• Compatible with PS Audio DMP for SACD playback in DSD
• DSD direct through I2S
• 192kHz asynchronous coax and TOSLINK inputs
• 192kHz asynchronous USB
• Single and double rate DSD
• CPLD input (FPGA) lowers jitter, waveshapes, reduces propagation delay
• Native mode standard
• No added Sample Rate Conversion
• High current class A hybrid output stage
• Passive output filter lowers transient distortion
• Direct coupled without any capacitors in output signal path
• High bandwidth output stage -3dB 60kHz
• Low jitter clocks
• High Current oversized analog power supply
• 7 voltage regulators
• High speed power supply diodes
• Massive 15,000 mFd low ESR capacitors
• ESS Hyperstream
