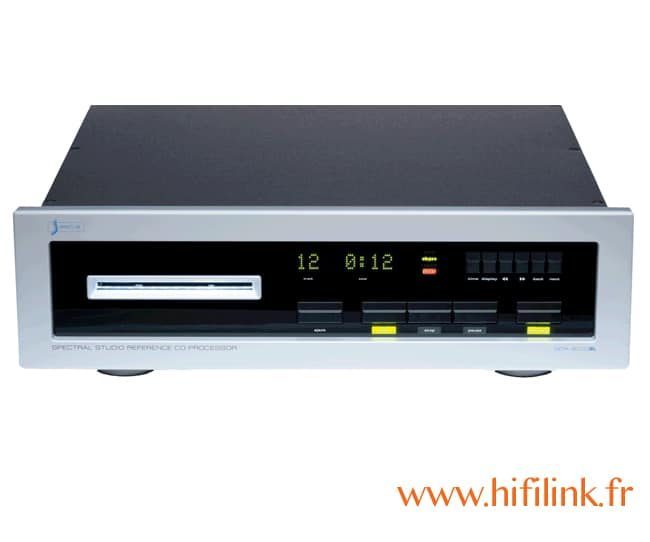

Spectral audio SDR 4000SV

Spectral audio SDR 4000SV

Créé par Spectral.

SPECIFICATIONS

Digital Systems Specifications

• Sample Rate:44.1KHz
• D/A Conversion: Four custom 24 bit DACs in double balanced configuration
• Digital Filter: 8x oversampling, 56 bit math 64 bit accumulator HDCD
• Analog Filter: Passive type, linear to 28KHz
• Frequency Response: DC to 22Khz ± .3 db
• DAC Step Resolution: Better than -120dB
• Digital Noise Output: 100 uV peak to peak or less
• Transient Overshoot: 8% or less
• Transient Settling Time: 100uS or less @ 1 %
• Intrinsic Jitter: Less than 1 picosecond rms,3-4 picoseconds peak

Analog Systems Specifications

• Outputs: RCA single-ended
• Output Impedance: 100 Ohms
• Frequency Response: DC to 1.2 Mhz -3 dB
• Harmonic Distortion: Less than .001
• Intermodulation(SMPTE): Less than .001
• Nominal Output: 0.75 Volt rms
• Output Voltage Swing: 2.5 Volts rms maximum
• Signal to Noise Ratio: Greater than 120 dB
• Channel Separation: Better than 115 dB
• Slew Rate: 400 V/us

Power Requirements

• Voltage: Factory set 120, 220, 240 VAC @ 47.5 Hz to 440 Hz
• Continuous Dissipation: 65 Watts

CD Transport

• Controls Front Panel:
  -Load Selector
  -Play Selector
  -Stop Selector
  -Pause Selector
  -Operate/Standby Selector
  -Time Display Function Selector
  -Display Brightness Selector
  -Scan Backward Selector
  -Scan Forward Selector
  -Previous Track Selector
  -Next Track Selector
• Controls Rear Panel:
  -Spectralink Digital Interface (optional)
  -Main Power Switch
  -AC Line Fuse
  -IEC AC Power Connector
• Compact Disc Drive: Front load type with VRDS clamping system, diecast alloy contruction
• Disc Loader: Precision type with polished linear bearings
• Pickup: Objective lens drive type with 3-beam laser pickup linear drive servo
• Wow & Flutter: Below measureable limit (accuracy of crystal)
• Gewicht: 20,9kg
• Breedte: 480 mm
• Hoogte: 105 mm
• Diepte: 400 mm
