Réponse en Fréquence: Line: +0-1dB, 0.6Hz to 80kHz at rated output. -3dB points below 0.3Hz and above 120KHz.
Phono: ±0.3dB of RIAA, 10 Hz to 20KHz
Distortion (THD) Less than .005% at 2V RMS output.
Noise & hum Line: 12µV RMS IHF weighted at main output with volume low (104dB below 2V RMS output).
Phono: 0.3µV RMS IHF weighted equivalent input noise, shorted input (76dB below 2mVRMS 1KHz input).
Gain Main output line: 11.1dB Processor: 0dB.
Phono: 58dB at 1 KHz.
Record output, line: 0dB. Phono: 47dB.
Impédance d’entrée: 60K ohms line, 47K ohms Phono, (0.7 to 7mV High output cartridge recommended).
Impédance de sortie: 210 ohms (RCA Main)§ 20K ohms minimum load and 1000 pF maximum capacitance. Record output 60K ohms minimum load and 100pf maximum capacitance.
Output polarity Non inverting
Maximum inputs Line: 9V RMS.
Phono: 40mV RMS 1KHz, 100mV RMS 10KHz.
Rated outputs 2V RMS into 100K load. (Maximum output 15V RMS at 1% THD at 1kHz.)
Power supplies Electronically regulated low and high voltage supplies. Automatic 25 sec. warm-up/brown-out mute. Line regulation better than .01%.
Tubes: (2) 6H30 dual triodes
Alimentation requise: 200-270VAC 50/60Hz – 39 watts.

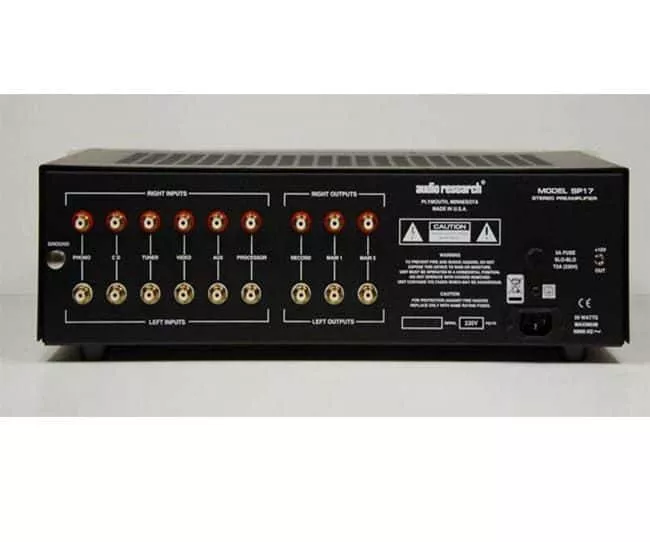

Autres entrées: (6): phono, CD, tuner, video, aux, processor.
Outputs (3): 2 main, 1 record (Single Ended RCA connectors).

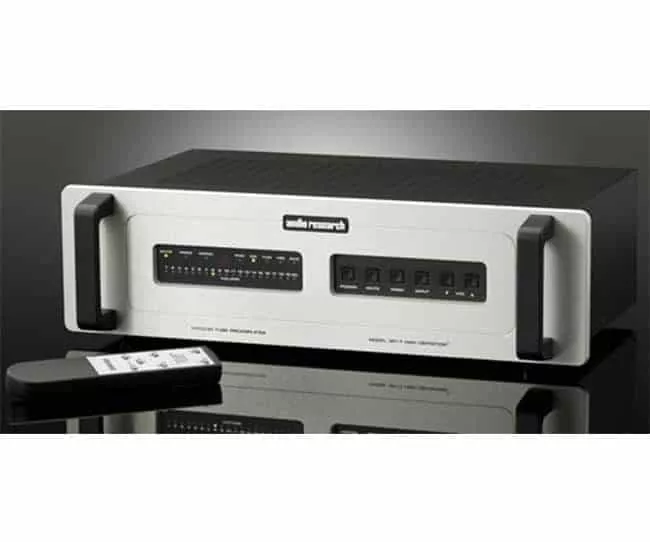

Push buttons: Volume up, volume down (102 steps, 20 LED indicators), Input, Processor, Mute, Power. All functions on IR remote control.
Dimensions: Largeur: 48 cm x Hauteur: 13.2 cm x Profondeur: 25.4 cm. Connecteurs arrières ajoutent: 1.5 cm. Les poignées frontales sont optionnelles.
Poids: 5.7 kg
Poids pour l’envoi: 9.1 kg
6 x entrées stéréo ( 1 phono MM) asymétriques
3 x sorties stéréo ( 2 x main , 1 x record ) asymétriques
1 x Trigger 12 V
Finitions disponibles : alu brossé ou noire
Lien sur la Fiche Constructeur: Audio Research SP17
